How To Setup A Rainwater Catchment System

Rain catchment, rain harvesting, or rain barrels are a favorite project of many gardeners and homesteaders.  The truth is that water is the basis of all life on our homesteads and gardens, so it makes sense that we look to take advantage of the rain that is already falling on our home.  Catching water to use is a great way to reduce our water bills.

rainwater catchement

For each square foot of catchment we create we capture .6 gallons per inch of rain.  Where I live in North Carolina it rains an average of 42 inches per year, if we consider the average size a home in the US (2,400 square feet) that means that if we were to catch all the rain that fell on that roof in a year, we would capture over 60,000 gallons!  That’s a lot of water!

Parts You Need To Catch Rain Water

Regardless of the size and scale of your system you’ll need a few basic parts to put it all together.  Below this section I dig into some of the details you also want to consider, but at it’s basics you’ll need the following.

Catchment Surface

This can be any flat surface where water lands and is channeled where we want to store it.  In many cases people look to their roofs because it’s a large surface that already has gutters which will collect and channel the water into a few points where we can collect.  This could be any surface so get creative.  It could be the roof of our chicken coop, the roof of a barn, it could even be a parking lot that is graded to drain the water into a settlement pond or swale.

stand alone water catchment surface

The material of this surface can be almost anything, but do consider what that surface introduces into the water.  If for instance you have a shingle roof, there are a lot of chemicals in them which prevent biological growth and hold up in the sun for years.  These can transfer to your water if you’re not careful.  In general the best roof surface is is a metal roof, because it is less likely to impart any bad chemicals into your water and is pretty easy to clean if it gets real dirty.

First Flush Diverter

As with anything outside, things can get dirty.  In the case of roofs and large open surfaces, we find that dust, dirt, and pollen settle onto roofs.  Additionally you’ll have birds pooping on it, bugs dying onto it and other things making your roof a dirty place.  We obviously don’t want any of these things in our water, and while we can’t prevent it, we can use a first flush diverter to try to avoid the bulk of this going into our storage tanks.

A first flush diverter is a mechanical device that lets us wash of the roof with all the gunk in it, then divert the now cleaner water to our tanks.  This can be done a few different ways, a whole bunch of options can be found online both for purchase and DIY.  The video below shows you one way you can do this.

Storage Tank

catchment tanksLater on I’ll go into how to calculate how much storage you need, but suffice to say you’ll need a good bit of storage to really cover your needs.  There are a lot of DIY options out there with 55 gallon drums or 120 gallon totes, but in past experience I’ve found these to be to be a lot of extra hassle and in the end you don’t save as much because you’ll need a bunch of them, each time adding in connections that can fail.  Typically you can find barrels for around $20 a piece, but then you’ll spend $10 or more in PVC parts to interconnect them.

A 500 gallon water tank can be purchased for around $300 if you’re able to go pick it up, shipping is the tough part.  With a tank that size you’re going to want to pour a pad to set it on for stability and safety, so you should factor that into the cost.

Is Rain Water Safe?

Yes and no.  According to Anne Marie Helmenstine, Ph.D. of Biomedical Sciences rain water is generally pretty safe to drink or use on your garden.  It’s always recommended to filter and purify if you’re not sure about the source.  When we are talking about ingesting something we need to do our research and consult experts (I’m not one).

Where I think most people will run into trouble is in the catchment and storage of the water.  The water as it falls from the sky is pretty clean, but once it lands on a surface and is move into a tank, you can run into issues with less than desirable things being introduced.  Even with water from the sky, there may be some pollution, dust or other biological elements in the water.  So always filter and purify.

How Much Water Do You Need?

I found that water catchment is only actually useful if you go big, small rain barrels are a fun project, but gardens require a lot of water and most can’t keep up in any significant way.  A general rule is you need about 0.8 gallons of water per square feet per week for your garden.  This will vary based on your climate, soil and crops, but it’s a good place to start.

So figure out how many square feet of garden you have, times that by 0.8 gallons to figure out your total weekly needs.  Example: 1000 square feet of garden will need 800 gallons per week.  It’s also important to consider the averages for the month in your growing season.  A quick google search for “monthly rainfall in…” will give you a chart, for me I get 3 inches per month or more all year round, so I need to consider that when sizing my system.

If I had a house that was 1,500 square feet of roof times .6 gallons per sq/ft times 3 inches of rain in the month, I can collect a maximum of 2,700 gallons per month.  This would support a maximum of 843 square feet of garden (2700 divided by 4 weeks divided by .8 gallons = max garden size).  So you can see that you need a pretty big area to collect, to store and the infrastructure to move it from one place to another.

Storing Water

Keeping water stored up is no small task, mainly because of the quantity we need and how heavy it is.  At 8.5 lbs per gallon, if we take the above example that means we need support over 11 tons!  The tank would need to be 8 feet across and 9 feet tall, which typically costs $1500-$2500.  These are all very big numbers obviously and even at their scale, it’s only supporting a smallish garden.

water barell

Tanks this size are a lot to transport, to move and to install.  If you’re going to go above 100 gallons I strongly suggest getting a cement footing poured so that you know the surface below can safely handle the weight, plus you’re going to want at least a little elevation so that you can fit a bucket under the bottom drain or have working room for pipe connections.  Because of the size, the weight of the water will provide pressure to push the water out the bottom pretty well.

When you’re storing water in bulk you need to make sure that you prevent foreign bodies from getting introduced, like a mouse climbing in and drowning, or bugs falling in and algae forming. We can do this through various methods using hardware cloth, opaque containers and in some cases chemical controls.

Low Pressure System

One advantage of municipal or well water systems is they are pressurized, typically to around 40 PSI (pounds per square inch).  When we capture water we don’t always have that much pressure so we can do a few things to overcome it.

drip tape irrigation

First is we can get the water into an elevated position.  If you’re able to capture the water in a high spot and put your garden or home in a lower spot, we can use that elevation change to our advantage.  For every foot elevation we can get our water, we will gain about .4 PSI.  So if we are able to raise the water to 100 feet above where we need it, say on top of a hill, we could get 40 psi at our spigot down the hill.

Most people don’t have that drastic of a change in their topography, so instead we can use low pressure irrigation to overcome any limitations.  To meet this need there are now several drip tape solutions that are designed with low pressure in mind.  In some cases you’ll only need around 10 psi  (25 feet of elevation) to get your garden watered.

Filtration & Purification

Depending on your setup and your use you might want to consider filtration and/or purification in line somewhere. The difference between these two processes is important to understand.  Simply put, the main difference lies in the level of protection they provide. Generally speaking, a water filter is designed to remove waterborne protozoa and bacteria, but not viruses. A water purifier is designed to combat all three classes of microbes, including viruses.

dirty water

If you want to go this route, a commercial system can be had for not too much money and there are a lot of good options.  Since we need to remove things measured in microns, our ability to come up with DIY solutions are just not possible here.

So that’s some of the basics of catching water for use in your garden and potentially as water in the home if you’re off grid.  Make sure you read up, do your home work here because there are some finer points to get right.

Your Turn!

  • What are your plans to for water catchment?
  • What tips can you share if you’ve made your own system?

How To Prepare Soil For Vegetable Gardens

Having taught people to garden for years, many people want to know how to prepare their soil so they can start a vegetable garden.  If you talk to people who have been growing for years, you’ll notice they spend a lot of time building the soil in their garden beds.

how-to-prepare-soil-vegetable-gardens



For first time gardeners I always recommend to start small and because each patch of dirt is different, I recommend starting with a raised beds, which is nothing more than building a bed of soil on top of the ground instead of in it.  You can add sides made out of wood, edging or other materials as a side wall, but it isn’t required, mounded dirt works just as well if you’re on a budget.

Building A Raised Bed Frame

For most people they want to have the tidy look of a wooden frame and it can be done quickly for little money.  Start with three 2×6’s and cut one of them in half.  This will form the four sides of the bed and create a bed that is 4 feet wide by 8 feet long.

raised bed garden

This is an ideal size because it minimizes the number of cuts (pro tip: big box stores will cut it for free for you) and at four feet, you can reach to the middle from either side without having to stretch too much.  A few screws will make a solid frame for you to fill in the dirt with.

Turn The Soil Below

turn soil with pitchforkEven though we are going to build a bed above the ground, we want to break up the soil below it so that our plant’s roots have an easier time of penetrating the ground as they grow.  Ideally you would shovel off the top layer if it is grass, but I’ve done it both ways.  Removing the grass below will help reduce weeds coming up later, so it’s often worth the effort.

If the soil is pretty bare, what I’ll do is rake the top then go buy a gallon jug of white vinegar to douse the little bits of weeds or grass with the vinegar to kill a few days before I build my bed.  White vinegar will work well to kill the weeds in spot treatments, but if you have more than 10% coverage, I’d just scrape the top off completely.

The last part is take a “digging fork” and just break up the top few inches of soil, it can be pretty chunky because we’re going to cover it all with our soil bed mix soon anyway.  Don’t get too tied up in making it perfect, this is a really a rough pass that we do quickly and move on.

Mixing The Perfect Soil To Grow In

First off, there are many different options here and if you ask 100 people you’ll get 101 recommendations.  So understand that if someone uses something different, that’s fine.  For most people just starting out I try to make it really simple and we can get into more of the nuances later.  So use this mix to start and in a few years, start to try different things.  We want to get you to gardening as quickly as we can and if you get caught up in what mix is the best, you’ll never actually start gardening.

raised bed soil mixture for good growing a garden

So I use a mix of compost, vermiculite, and peat moss. Typically I buy for a single 4 foot by 8 foot bed that’s around 6 inches deep the following:

  • 10 bags of compost (one cubic foot size bags)
  • 1 bale of compressed peat moss (three cubic feet size)
  • 1 bag of vermiculite (4 cubic foot sized bags).
  • 1 small bag of Bone Meal
  • 1 small bag of Blood Meal

If you don’t know what these are, just print this post off and bring it with you to any big box store, they’ll know exactly what you need from this list.  If the employee doesn’t know these items, it’s best to find someone else because these are gardening 101 supplies.

Compost

mushroom compsting mixFor compost you’ll find a lot of different options, my favorite is “mushroom compost” which you can find bags at any big box hardware store.  A close second is “Black Kow” compost.  I’ll often grab a few of each to make up my 10 bags for my bed.

If you can’t find these specific ones, it really isn’t a big deal, use whatever compost you can find at your local store or garden center.  Compost provides a lot of nutrients to your plants and serves as the base for seeds to root into.

Vermiculite

bag of vermiculiteVermiculite is essentially rock dust crushed up, it provides a lot of minerals for your plants, but it’s main function is to act like a sponge for water.  Be sure not to get confused with perlite, it’s not the same.  This one might take some calling around to find, if there is a local gardening group they might have some good leads.

I will also add a note here that if you start searching around about vermiculite, you’ll inevitably run into an old timer that will make the point about asbestos in vermiculite.  This is something that we had to worry about 40 years ago, but today there is no source allowed in the USA or Canada that doesn’t carefully screen and test for this.  The myth still persists today, but you should have zero concerns because the industry has long made changes to prevent this.

Often garden centers or seed/farm supply places carry it.  I’ve even seen it in small bags at your big box hardware stores.  If you can’t find it consider purchasing a few bags off of Amazon, while it’s a bit more expensive locally, you can buy a few of these bags of vermiculite and be good for a 4×8 bed.

Peat Moss

package of peat moss or spagnum mossThe last part of the soil mix.  This fluffs up the soil, allows for good oxygen infiltration and also acts like a sponge to hold in moisture until plants need it.  This can be found anywhere and they type or brand doesn’t matter.  The only thing I’ll suggest is make sure you get it from the soils section where you’d find your bags of compost or near the bags of mulch section.  Sometimes they sell small bags that are meant for growing orchids, these are often expensive, but the ones in the bagged compost section is usually sold “compressed” for very cheap ($10-$20 for 3 cubic feet compressed).

A common question that comes up around peat moss are concerns about if peat moss is sustainable.  It is true that 10 years ago peat moss was harvested from natural wet lands, but today it is done in a manner that is regenerative.  If you are still concerned, consider sourcing coconut coir which is a material similar to peat moss but made from the waste product of coconut husks.  In the end, I suggest you don’t get too caught up in your first year or so, just get your first year under your belt and then work on improving in later years.

Bone And Blood Meal

I prefer to use bone meal and blood meal, but there are many options.  Obviously from their names, they are a animal sourced product.  Those wanting a non-animal source can try seaweed meal or fertilize, you can buy seaweed fertilizer here.  Bone and blood meal are organic sources of the major nutrient (NPK: Nitrogen, Phosphorus, and Potassium).

bone meal and blood meal in bags

Since we are starting out with such good ingredients, we don’t need much of these.  If we were starting with the soil in ground, there may be need for more as directed from a soil test, but since we are building our own soil we don’t need a soil test for our first year or two.  I start out with one large handful of each, mixed evenly across the whole 4×8 raised bed.

Mixing It All Together

Some people will use a tarp to mix the soil together, I just skip that and dump everything in a pile in the framed bed, then mix with my hands or a shovel.  If you choose compost that is moist, but not sopping wet it will mix easier.  Sometimes this means pulling off the top few bags at the garden supply place so you get to a lower layer of bags that haven’t soaked up any recent rain.

Here is my basic approach:

  • Take your peat moss bale and place it in the bed
  • With a shovel stab the plastic in a line to break open the bale
  • Turn it over to dump the peat on the ground and remove the plastic
  • Shake out half your vermiculite on top of the peat moss, set the rest aside
  • Grab one large handful each of bone meal and blood meal, sprinkle across the bed
  • Place a bag of compost in the bed, stab with shovel to dump on the pile
  • Repeat with compost about half your bags
  • Using the shovel and hands, mix it all up until it’s well mixed
  • Add remaining materials and mix it all up
  • smooth out the top and give the soil a brief water

How To Water Your Garden

You want to water it a few days before you plant if you can, this will let all the water to absorb into the peat moss and vermiculite.  Water for a count of five and then stop.  Again, counting to five, if the water fully absorbs into the soil so there is no sheen on the dirt from the water, water again for a count of five. repeat counting to five until the water doesn’t absorb all the way in five seconds.  This is a good indicator that the soil is nicely saturated with moisture, but not soaking.

how to water your garden and vegitables

In the end building your soil will set you up for success for years to come.  Following this formula and starting small, you will have a better drastically easier time because we’re not trying to fix our existing soil or battle weeds.  Start with one 4×8 bed, then next year go a little bigger.  The number one thing I see is new gardeners burning out their first year because they took on too big of a garden.

Your Turn!

  • What are your garden plans this year?
  • What tips have you learned?

Tiny Houses In Cities

One questions that comes up a fair bit about tiny houses is what about tiny houses in cities?  Its a good question because currently over half of the world’s population lives in a city and we only expect that number to grow.  For the most part, tiny houses have existed in smaller towns, on the edge of a city or in rural locations.  But the truth is there are a lot of city dwellers that want to live tiny.

My go to response to the question about tiny houses in citiesimgpreview-2 is that we can still have tiny houses in the city, but most likely what we will do is take the design principals of tiny houses and then apply the to the design of apartments.  Essentially taking tiny houses and stacking them.  It is important to make sure that we don’t loose sight of our focus on design, make sure there is a strong connection with the outside, and to develop green spaces and public places for us to enjoy.

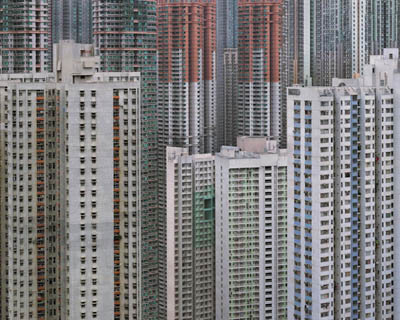

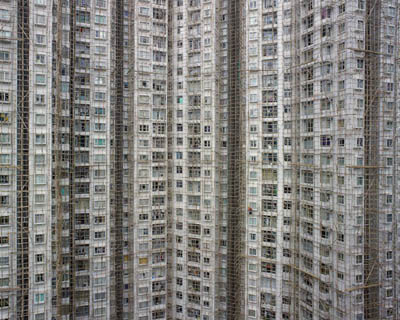

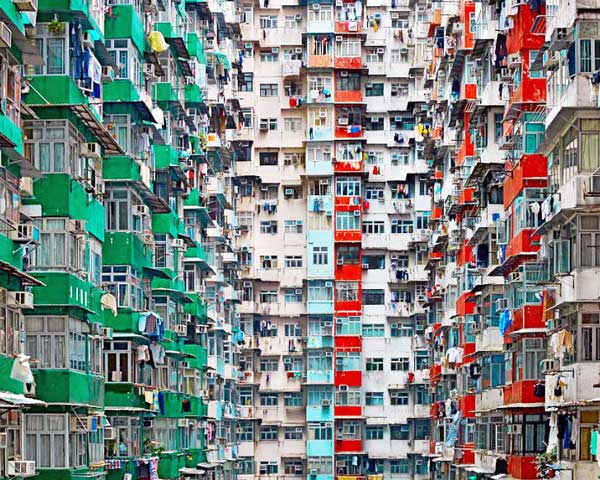

I think the biggest challenge of adapting tiny houses to a city is ensuring there is enough  natural light.  And I don’t mean window that only opens to a light shaft in the center of a building, at worst it would open to a open space within a building that is build around a large courtyard.  Having visited NYC several times, I couldn’t imagine living in a place where your only window was a mere few feet from a solid brick wall.  Honestly, I feel like humans should live like that; I feel like there should be at least one large window that allows your sight to extend a few thousand feet.

lifeedited-apartmentWhile I do technically live in a city – Charlotte, NC – its a very different kind of city.  You can easily pickup an acre lot here, go 20 minutes outside the city and you can get 10 acre lots.  There is a lot of woods still here and nature isn’t too far.  For me personally I just need to see lots of greens and browns, to have that connection with nature.  Something just clicks with me when I’m outside in the woods.

I say all this to point out that however we meet the needs of urban density and however we implement tiny houses in a city, we need to make sure there is  good connection with green spaces.  It is very important in tiny living because you really do need to extend your living space to the outdoor world, which means we need quality places to go to.

What got me thinking about all of this is an interesting project out of the school of Savannah College of Art and Design.  They posed an interesting question: as we transition to more public transportation, walkable cities and biking, what do we do with the vestiges of parking decks?scadpad-rendering

There response was to create modular units that could create housing out of parking decks.  At first it seems odd, but I realized the potential and some of the drawings are pretty neat!

Capturedfs

Urban Eden

For those of you who have been following, the Solar Decathlon is going on right now.  The Decathlon features innovative homes that are solar powered built by universities around the US.  Its a pretty big production as a dozen houses are constructed on site to compete and showcase to thousands of visitors.

Well my home city of Charlotte NC has a team going to the Decathlon from UNCC.  Here is their house called Urban Eden.  Some of the neat features of this house is the rolling solar panel array that allows you to control the solar exposure in the summer months.  They also have an interesting polymer cement that reduces the buildings impact.  Check out the video below to see it all!



Capture

Changing The Goal

Many people know about the video The Story Of Stuff, since its release it has been very popular.  Recently the same folks release a new video called The Story Of Solutions.  The video talks about how for a long time the name of the game in our economy has been growing the GDP, having more, buy buy buy.  I am preaching to the choir, but we all know while there are things we need, consumerism in America has become a little crazy.

So this video makes the assertion that that we shouldn’t focus on more, but instead better.  I think the one point they should have made stronger in the video is that in some cases more=better, but it often has a different twist to it.  In some cases more won’t be better and for an economy that is on a finite planet we need to grapple with that.

While the solutions they presented in the film are good ones, we also know we have a long fight ahead of us against those who have a financial stake in keeping the status quo.  It made me think of the project Christopher Carson (of Tiny House The Movie) was part of, a local campaign to fight Xcel Energies deep pockets campaign to prevent municipal sustainable energy program.

Capture
